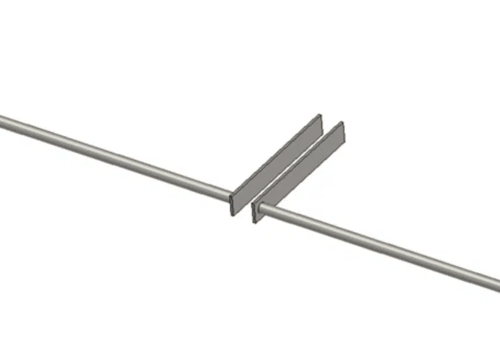

Dipole Antenna

Advanced modeling techniques and simulation strategies for CST interface

Building on your familiarity with the CST interface and project structure, as covered in our previous tutorial on the Helix Antenna, we’ll delve deeper into modeling techniques and simulation strategies.

In this tutorial, we’ll utilize the Transform tool to manipulate geometries, including movement, rotation, copying, and scaling. Additionally, we’ll introduce symmetry planes to streamline the simulation process, enhancing efficiency.
