Abaqus Tutorial 11a: Ply Failure

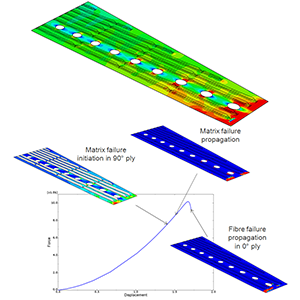

In this tutorial, you will modify a structural model of a wing panel to define the material properties including the ply failure parameters. You will then perform a static analysis and visualize the simulation of the damage propagation with Abaqus/Viewer.

You will learn how to:

• Define material properties
• Define failure criterion
• Use damage propagation model
