Abaqus Tutorial 10: Composites

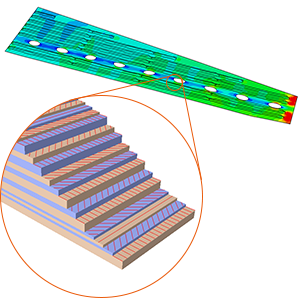

In this tutorial, you will modify a structural model of an aircraft wing to define the material properties and the stacking sequence of the laminated structures. You will then perform a static analysis and visualize the results of the simulation with Abaqus/Viewer.
You will learn how to:
- Define orthotropic
- Create and modify a lay-up
- Define the stacking direction
- Create ply stack plots
- Post process composite results
